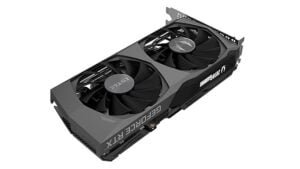

The GeForce RTX 3060 Ti is a high-end graphics card by NVIDIA, launched on December 1st, 2020. Built on the 8 nm process, and based on the GA104 graphics processor, in its GA104-200-A1 variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on GeForce RTX 3060 Ti. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The GA104 graphics processor is a large chip with a die area of 392 mm² and 17,400 million transistors. Unlike the fully unlocked GeForce RTX 3070 Ti, which uses the same GPU but has all 6144 shaders enabled, NVIDIA has disabled some shading units on the GeForce RTX 3060 Ti to reach the product’s target shader count. It features 4864 shading units, 152 texture mapping units, and 80 ROPs. Also included are 152 tensor cores which help improve the speed of machine learning applications. The card also has 38 raytracing acceleration cores. NVIDIA has paired 8 GB GDDR6 memory with the GeForce RTX 3060 Ti, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1410 MHz, which can be boosted up to 1665 MHz, memory is running at 1750 MHz (14 Gbps effective).
Being a dual-slot card, the NVIDIA GeForce RTX 3060 Ti draws power from 1x 12-pin power connector, with power draw rated at 200 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 1.4a. GeForce RTX 3060 Ti is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card measures 242 mm in length, 112 mm in width, and features a dual-slot cooling solution. Its price at launch was 399 US Dollars.
Graphics Processor
GPU Name GA104
GPU Variant GA104-200-A1
Architecture Ampere
Foundry Samsung
Process Size 8 nm
Transistors 17,400 million
Density 44.4M / mm²
Die Size 392 mm²
Chip Package BGA-2713
Graphics Card
Release Date Dec 1st, 2020
Availability Dec 2nd, 2020
Generation GeForce 30
Predecessor GeForce 20
Successor GeForce 40
Production Active
Launch Price 399 USD
Current Price Amazon / Newegg
Bus Interface PCIe 4.0 x16
Clock Speeds
Base Clock 1410 MHz
Boost Clock 1665 MHz
Memory Clock 1750 MHz
14 Gbps effective
Memory
Memory Size 8 GB
Memory Type GDDR6
Memory Bus 256 bit
Bandwidth 448.0 GB/s
Relative Performance
GeForce GTX 1070 57%
GeForce GTX 1660 Ti 57%
GeForce RTX 3050 8 GB 58%
Radeon RX Vega 56 61%
GeForce GTX 1070 Ti 64%
Radeon RX 5600 XT 65%
Radeon RX Vega 64 66%
GeForce GTX 1080 67%
GeForce RTX 2060 67%
Radeon RX 5700 70%
Arc A580 70%
Radeon RX 6600 73%
GeForce RTX 2060 SUPER 76%
GeForce RTX 2070 76%
Radeon RX 5700 XT 77%
GeForce RTX 3060 12 GB 78%
Arc A750 81%
Radeon VII 81%
TITAN X Pascal 83%
Radeon RX 6600 XT 84%
GeForce GTX 1080 Ti 86%
Arc A770 86%
GeForce RTX 2070 SUPER 87%
Radeon RX 6650 XT 91%
Radeon RX 7600 92%
GeForce RTX 4060 92%
GeForce RTX 2080 93%
Radeon RX 7600 XT 95%
GeForce RTX 2080 SUPER 98%
GeForce RTX 3060 Ti 100%
