Specifications:

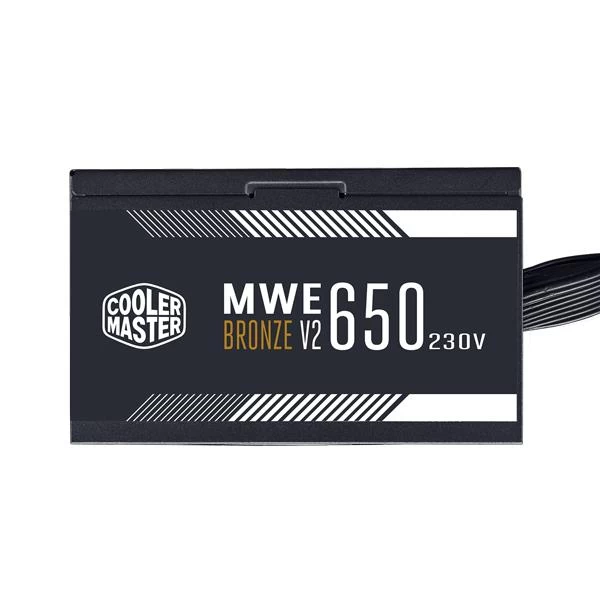

| Model | MPE-6501-ACABW-BIN |
| ATX Version | ATX 12V V2.52 |
| PFC | Active PFC |
| Input Voltage | 200-240Vac |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2400 RPM |
| Noise Level @ 20% | 16.54 dBA |
| Noise Level @ 50% | 26.5 dBA |
| Noise Level @ 100% | 42.5 dBA |
| Efficiency | 88% Typically |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Power Good Signal | 100 – 500 ms |
| Hold Up Time | >14ms at 100% Full Load@230Vac |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| ATX 24-Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 6 |
| Peripheral 4-Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Serie | MWE Bronze Series |
| 80 Plus | Bronze |
| Modular | Non Modular |
| Wattage | 500 to 750W |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
- Wattage650 Watt
- SeriesMWE SERIES
- Certification80+ BRONZE
- PCIe Connector (6+2)4
- SATA Connector6
- Peripheral (4-Pin)3
- Warranty5 Years
