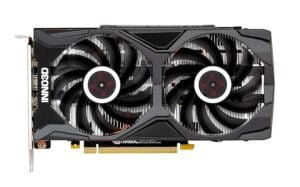

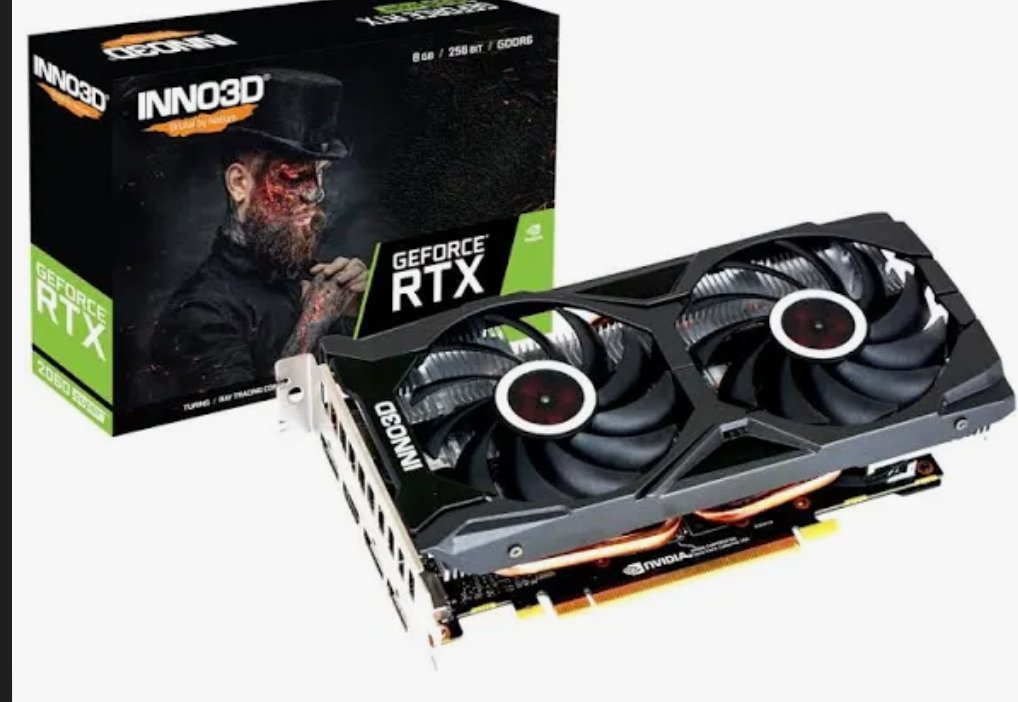

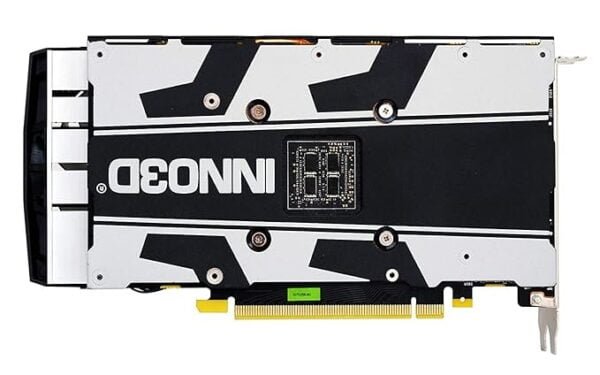

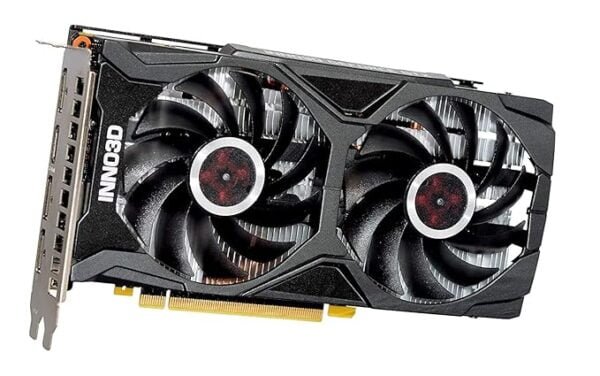

Being a dual-slot card, the NVIDIA GeForce RTX 2060 SUPER draws power from 1x 8-pin power connector, with power draw rated at 175 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0, 2x DisplayPort 1.4a, 1x USB Type-C. GeForce RTX 2060 SUPER is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card’s dimensions are 229 mm x 113 mm x 35 mm, and it features a dual-slot cooling solution. Its price at launch was 399 US Dollars.
Graphics Processor
- GPU Name TU106
- GPU Variant TU106-410-A1
- Architecture Turing
- Foundry TSMC
- Process Size 12 nm
- Transistors 10,800 million
- Density 24.3M / mm²
- Die Size 445 mm²
- Chip Package BGA-2228
Graphics Card
- Release Date Jul 9th, 2019
- Generation GeForce 20
- Predecessor GeForce 10
- Successor GeForce 30
- Production Active
- Launch Price 399 USD
- Bus Interface PCIe 3.0 x16
- Reviews 40 in our database
Clock Speeds
- Base Clock 1470 MHz
- Boost Clock 1650 MHz
- Memory Clock 1750 MHz
- 14 Gbps effective
Memory
- Memory Size 8 GB
- Memory Type GDDR6
- Memory Bus 256 bit
- Bandwidth 448.0 GB/s
Relative Performance
Radeon RX 570 50%
Radeon R9 390 51%
Radeon R9 290X 51%
GeForce GTX 970 52%
GeForce GTX TITAN 52%
GeForce GTX 780 Ti 53%
Radeon R9 390X 54%
Radeon HD 7990 54%
Radeon RX 480 54%
GeForce GTX 690 55%
GeForce GTX 1060 6 GB 56%
Radeon RX 5500 OEM 57%
Radeon RX 580 58%
Radeon RX 5500 XT 58%
Radeon RX 6500 XT 59%
GeForce GTX 980 59%
GeForce GTX 1650 SUPER 59%
Radeon R9 FURY 60%
Radeon RX 590 62%
Radeon R9 295X2 65%
GeForce GTX 1660 66%
Radeon R9 FURY X 67%
GeForce GTX 980 Ti 68%
GeForce GTX TITAN X 70%
GeForce GTX 1660 SUPER 72%
GeForce GTX 1070 76%
GeForce GTX 1660 Ti 76%
GeForce RTX 3050 8 GB 77%
Radeon RX Vega 56 N 80%
GeForce GTX 1070 Ti 85%
Radeon RX 5600 XT 87%
Radeon RX Vega 64 88%
GeForce GTX 1080 89%
GeForce RTX 2060 89%
Radeon RX 5700 93%
Arc A580 93%
Radeon RX 6600 97%
GeForce RTX 2060 SUPER 100%
